Start Small and Scale as Needed with Future-Ready Performance:

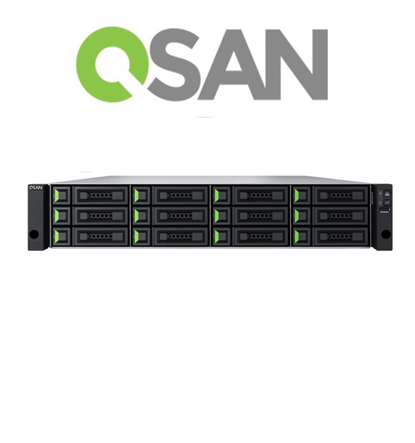

The XCubeNXT 8112 (3.5" 2U 12-bay) is the newest generation of XCubeNXT that can help you start small and scale readily with future-ready performance. Highly available and secure with multiple protocol and cross QSAN platform support, it is designed to be ideal for applications in mission-critical data centers, high-performance computing, virtualization, or media environments. Plus, backed by a 5-year limited warranty for proven enterprise-grade reliability.
- CPU: Intel® Xeon® 4-core Processor
- RAM: 32 GB DDR4 ECC DIMM (up to 512 GB)
- Fastest Interface: 12 Gb SAS 3.0 Controller
- Versatility Performance: Scalable Host Card Design
| QSAN XN80100 Series Specifications |
| XN8112R |
| Architecture |
Single controller |
| Processor |
Intel® Xeon® 64-bit 4-core (8-core processor models are also available |
| Total Memory Slots |
4 |
| Memory Expandable up to |
256 GB |
| Drive Bays |
3.5" Slot x 12
2.5" Slot x 4
M.2 Slot x 2 |
| Compatible Drive Type |
3.5” SATA HDD & 2.5” SATA SSD
2.5” U.2 NVMe SSD
M.2 NVMe SSD |
| Drive Interface |
SATA (6 Gb/s)
U.2 NVMe (PCIe Gen 3x2)
M.2 NVMe (PCIe Gen 3x2) |
| Storage OS |
QSM 4 |
| RAID Type |
0 / 1 / 5 / 6 / Z3 / 10 / 50 / 60 |
| Dimension (H x W x D) (mm) |
88.5 x 438 x 510 |
| Net Weight (kg) |
11.6 |
| Power Supply Unit |
450 W x 2 (80 PLUS Platinum) |
| |
