Affordable High-Performance Storage Solutions for Enterprise Needs:
The VTrak J5000 Series delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external 12 Gb/s SAS ports per I/O module provide the connectivity for large capacity solutions requiring multiple cascaded JBODs, and high bandwidth solutions requiring speed. It features fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, providing exceptional data availability even during component failures for the enterprise environment.
- SAS Performance: 12 Gb/s with enterprise reliability.

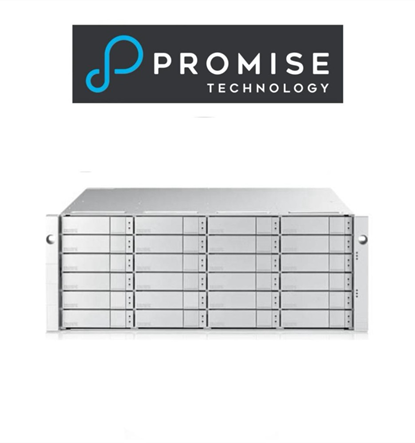

- Drive Bays: 24 hot-swappable 3.5” bays.
- Compatibility: Supports SAS and SATA drives.
- Redundancy and Flexibility: Dual active/active I/O modules and Configurable wide-port options
| Promise VTrak Series Specifications |
| VTrak J5800s |
| Drive Support |
Up to 24 3.5” drives
3/6/12 Gb SAS, 3/6 Gb SATA HDD and SSD
Supports any mix of SAS and SATA drives simultaneously in the same enclosure |
| External I/O Ports |

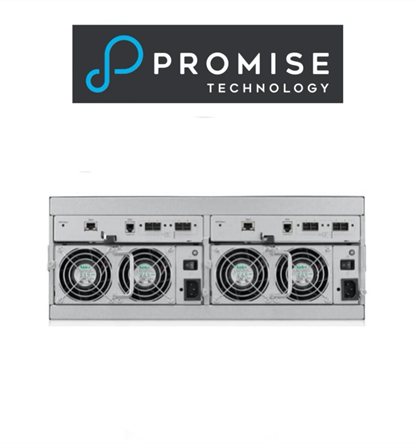

Each SBB2.0 I/O Module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS
feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs |
Expander Management
Features |
• Self-configuring expander supports full SAS domain topology management
• T-10 based zoning support
• End Device Frame Buering (aggregate bandwidth over multiple slow devices e.g. 6G and 3G)
• Smart cable support to detect cable type and tune PHY automatically for maximum reliability
• SMP – SAS Management Protocol
• In-band access to Expander and PHY information
• Statistic counters and performance monitors
• SES EM – SES Enclosure Management (ANSI T10 SES 2 Compliant)
• SCSI SES command set over virtual SSP device
• Wake-on-SAS support, Wake-on-LAN support |
| Management Interfaces |
• LED status indicator support for drives, FRU and enclosure environmentals
• In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures,
protecting data and hardware
• Full subsystem management CLI through out-of-band RS232 serial port |
| Power Supply |
Efficient 80PLUS GOLD Certified redundant PSU |
| Dimensions |
174.4mm x 446.7mm x 507mm
(6.87” x 17.6” x 19.96”) |
| Weight |
29.6Kg(64 lbs) w/o drives
49.6Kg (108 lbs) w/ drives |
| |
